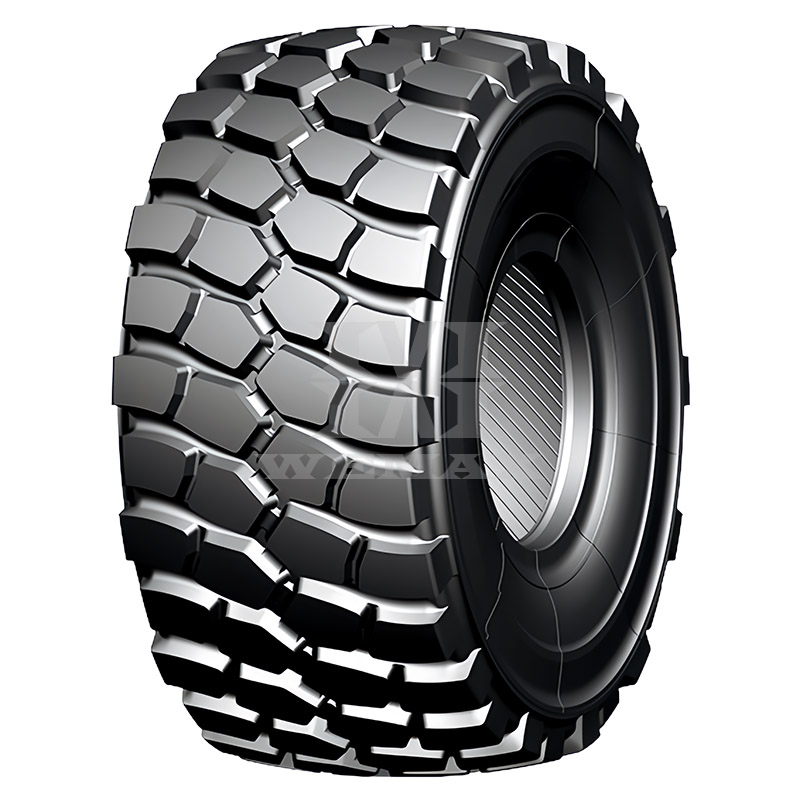

EX A45
E4/L4
Deep E4/L4 lug pattern combines excellent traction and high resistance to wear and cutting. Specifically designed to maximize traction in loader applications and profide the lowest cost-per-hour.
Features
■The four forms pattern block effectively imporve the traction, grip and self-cleaning and provide good passability
■The reinforced carcass, sidewall kerbing rib, optimized contact shape, deep grooves and specialized compounds effectively extend service life
■The excellent handling comfort and specialized tread compounds effectively improve productivity
Applications
Deep E4/L4 lug pattern combines excellent traction and high resistance to wear and cutting. Specifically designed to maximize traction in loader applications and profide the lowest cost-per-hour.
Features
■The four forms pattern block effectively imporve the traction, grip and self-cleaning and provide good passability
■The reinforced carcass, sidewall kerbing rib, optimized contact shape, deep grooves and specialized compounds effectively extend service life
■The excellent handling comfort and specialized tread compounds effectively improve productivity
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. | Inflation | Max L.C.C | L.I.S |
| mm | mm | mm |
KPa |
(kg) | |||||||
| 875/65R29 | EX A45 | L4 | TL |
27.00/3.0 28.00/3.5 |
★★ |
1870 | 860 | 62 | 600 | 25750 | 221A8 |
| 29.5R25 | EX A45 | E4/L4 | TL | 25.00/3.5 | ★★ | 1856 | 770 | 59 | 650 | 14000 | 216A2/200B |
| 26.5R25 | EX A45 | E4/L4 | TL | 22.00/3.0 | ★★ | 1730 | 660 | 56 | 650 | 11500 | 202A2/193B |
| 23.5R25 | EX A45 | L4 | TL | 19.50/2.5 | ★★ | 1622 | 595 | 50 | 525 | 14500 | 201B |
