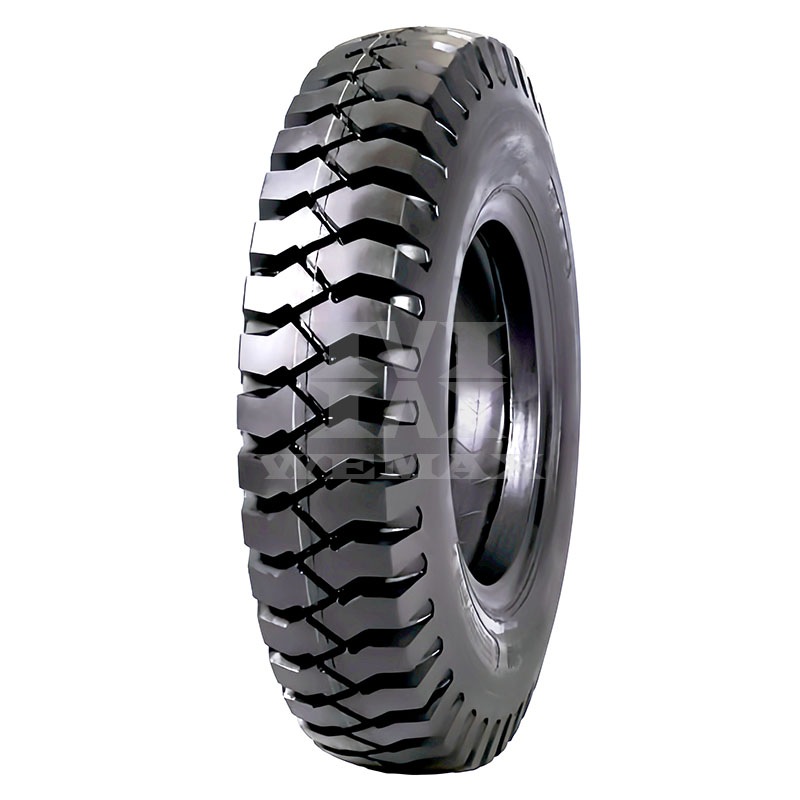

KT24
R4
For use on wheeled excavators when traction and stability are required.
Features
■Self-cleaning, open tread with mud breakers provides improved traction
■Reinforced sidewall for high stability and cut resistance
■Centerline tread tie bars reduces vibration during over-the-road driving
Applications
For use on wheeled excavators when traction and stability are required.
Features
■Self-cleaning, open tread with mud breakers provides improved traction
■Reinforced sidewall for high stability and cut resistance
■Centerline tread tie bars reduces vibration during over-the-road driving
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | PR | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
||
| mm | mm | mm | 10km/h | 50km/h | 10km/h | 50km/h | ||||||
| 9.00-20 | KT24 | R4 | TT | 7 | 16PR | 1020 | 260 | 26.5 | 880 | 810 | 2900 | 2500 |
| 10.00-20 | KT24 | R4 | TT | 7.5 | 18PR | 1073 | 278 | 29 | 910 | 840 | 3350 | 2900 |
| 11.00-20 | KT24 | R4 | TT | 8 | 18PR | 1105 | 293 | 29 | 910 | 840 | 3650 | 3150 |
| 12.00-20 | KT24 | R4 | TT | 8.5 | 20PR | 1145 | 315 | 30 | 880 | 810 | 4000 | 3450 |
